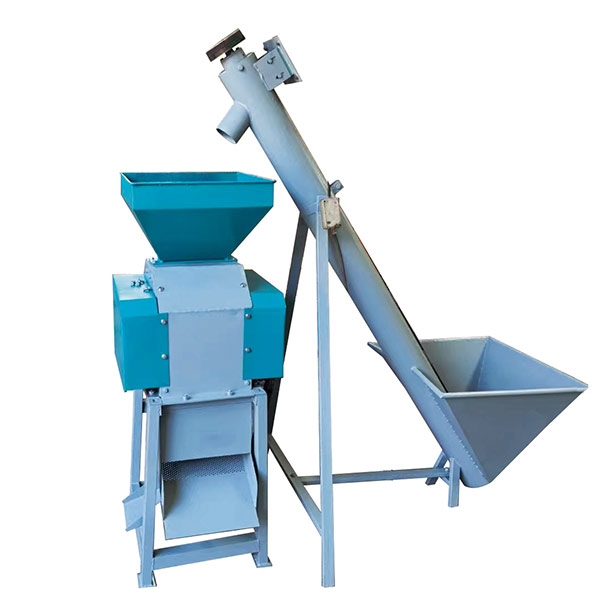

Hammer Feed Crusher

Feed Crusher machine is available to  grind  and cut various dry materials like sorghum,   maize straw, blighted millet, coconut, stalk,cassava etc and the raw materials in the fields of chemical    industry, pharmaceutical industry and brewing  industry. It is easy in operation, sanitary, form and durable in service and really an ideal equipment for grain processing.

Feed Crusher machine is available to  grind  and cut various dry materials like sorghum,   maize straw, blighted millet, coconut, stalk,cassava etc and the raw materials in the fields of chemical    industry, pharmaceutical industry and brewing  industry.

It is easy in operation, sanitary, form and durable in service and really an ideal equipment for grain processing.

Advantage

1.Widely application. It can process both agricultural materials and pharmaceutical &industrial materials such as corn stalk, peanut shell, dry grass,cotton stalk , and Chinese medicine crops, coal,coal residue,etc.

2.Simple structure for easy daily maintenance.Good maintenance and operate contributes to long service life of a machine.

3.Cheap Price.Because of low price and high efficiency, this small grinding machine is the ideal equipment for the farm owner, family use,small and middle size feeding factory.

2.Reasonable design.Final powder size can be adjusted according to replacing the different size screen. Moreover the ability to change screen size, and the option of a variable speed frequency drive control, enable the crusher to processing a variety of materials.

5.Easy operation and low energy consumption.High accurate and consistent product grinding,this will greatly save your money and time.

6.Long service life.Core part-hammers are made of high quality carbon alloy steel,which is durable and wear-resistant,it can ensure long service life and excellent processing effect.

Technical Parameters

Items 9FQ-36 9FQ-40 9FQ-42 9FQ-50-32 9FQ-50-40
Dimension

(L*W*H mm)



900*750*740



960*800*800



1000*850*850



1158*930*1090



1158*110*1090

Main Shaft Speed r/min

3800



3800



3800



3800



3800

Rotor Diameter mm

360



400



420



500



500

Weight

kg

80 100 130 170 200
Power

KW

5.5-7.5 5.5-7.5 11-15 11-15 15-22
Hammer Number 16 16 24 24 32
Hammer Arrangement Single head interleaving
