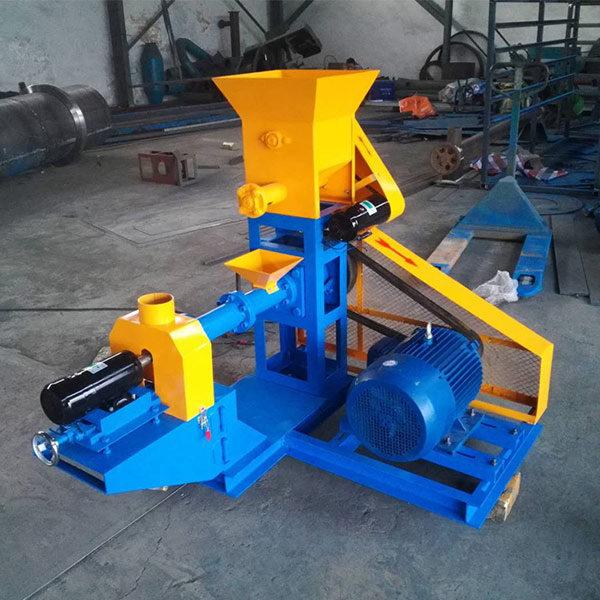

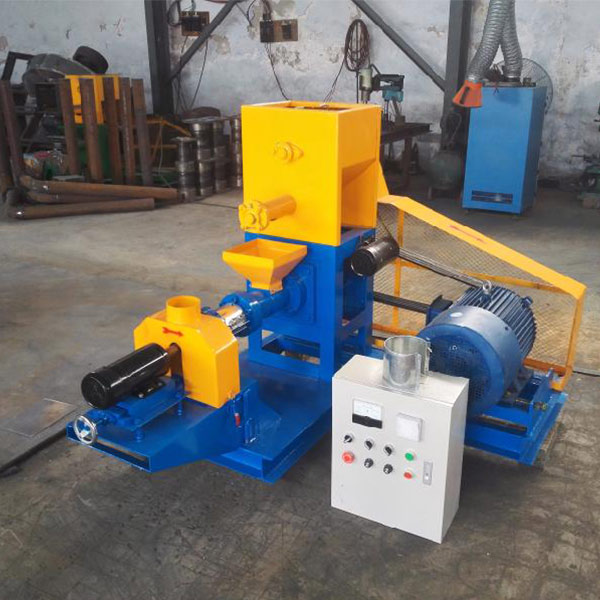

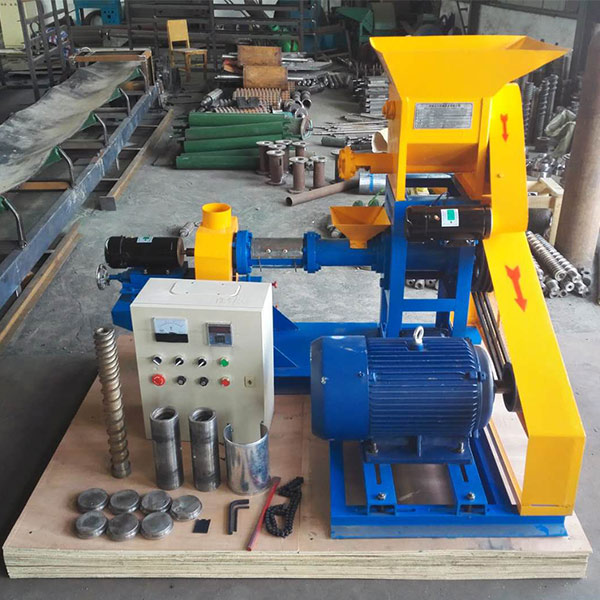

Puffing feed pellet machine

Puffing feed pellet machine is widely used for  producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed  pellets for fish, catfish, shrimps, etc. It can be classified into dry type machine and wet type machine according to your requirement and production scale.

Puffing feed pellet machine is widely used for  producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed  pellets for fish, catfish, shrimps, etc.

It can be classified into dry type machine and wet type machine according to your requirement and production scale.

Advantages

1.Extruding process requires fine powder size of raw materials, and extrusion gelatinizes the starch and denatures the protein at the same time.Starch gelatinization and systematism heighten feed caking property which contributes to high feed conversion and utilization rate. So as to improve feed water stability which can float 12-36 hours.

2.Good palatability helps avoiding feed materials separating to ensure an even nutrients distribution in pellets to guarantee a good fish performance of feed intake.

3.The pathogens in materials are removed through the high-temperature and high-pressure process, so extruded pellet fish feed has reduced digestive tract disease effectively. Low moisture content (about 10%) can prevent bacterial growth.

4.Extruded fish feed pellet with low moisture content , which facilities long-term storage,can be kept for five to six months when stored in a covered cool dry place.

5.Extruded fish feed can be made in different forms, such as floating feed, sinking feed, and slow-sinking feed, etc. It can meet different fish farming methods and reduce feed waste and water pollution.

6.Pellet feed of different sizes and densities can be made to accommodate the needs of species in various growth stages and with different habits.

Technical Parameters

Model Capacity Main Power Feeding

Power

Cutter Power Screw   Diameter Pellet Size
GP40 30-50kg/h 3kw*2 0.4kw 0.4kw φ40mm 1-8mm
GP50 60-80kg/h 11kw 0.4kw 0.4kw φ50mm 1-8mm
GP60 100-150kg/h 15kw 0.4kw 0.4kw φ60mm 1-8mm
GP70 180-250kg/h 18.5kw 0.4kw 0.4kw φ70mm 1-8mm
GP80 300-350kg/h 22kw 0.4kw 0.6kw φ80mm 1-8mm
GP90 400-450kg/h 37kw 1. 1kw 0.6kw φ90mm 1-8mm
GP120 500-700kg/h 55kw 1. 1kw 1.5kw φ120mm 1-8mm
GP135 800-1000kg/h 75kw 1. 1kw 2.2kw φ133mm 1-8mm
GP160 1200-1500kg/h 90kw 1.5kw 2.2kw φ155mm 1-8mm
GP200 1800-2000kg/h 132kw 1.5kw 3.0kw φ195mm 1-8mm
